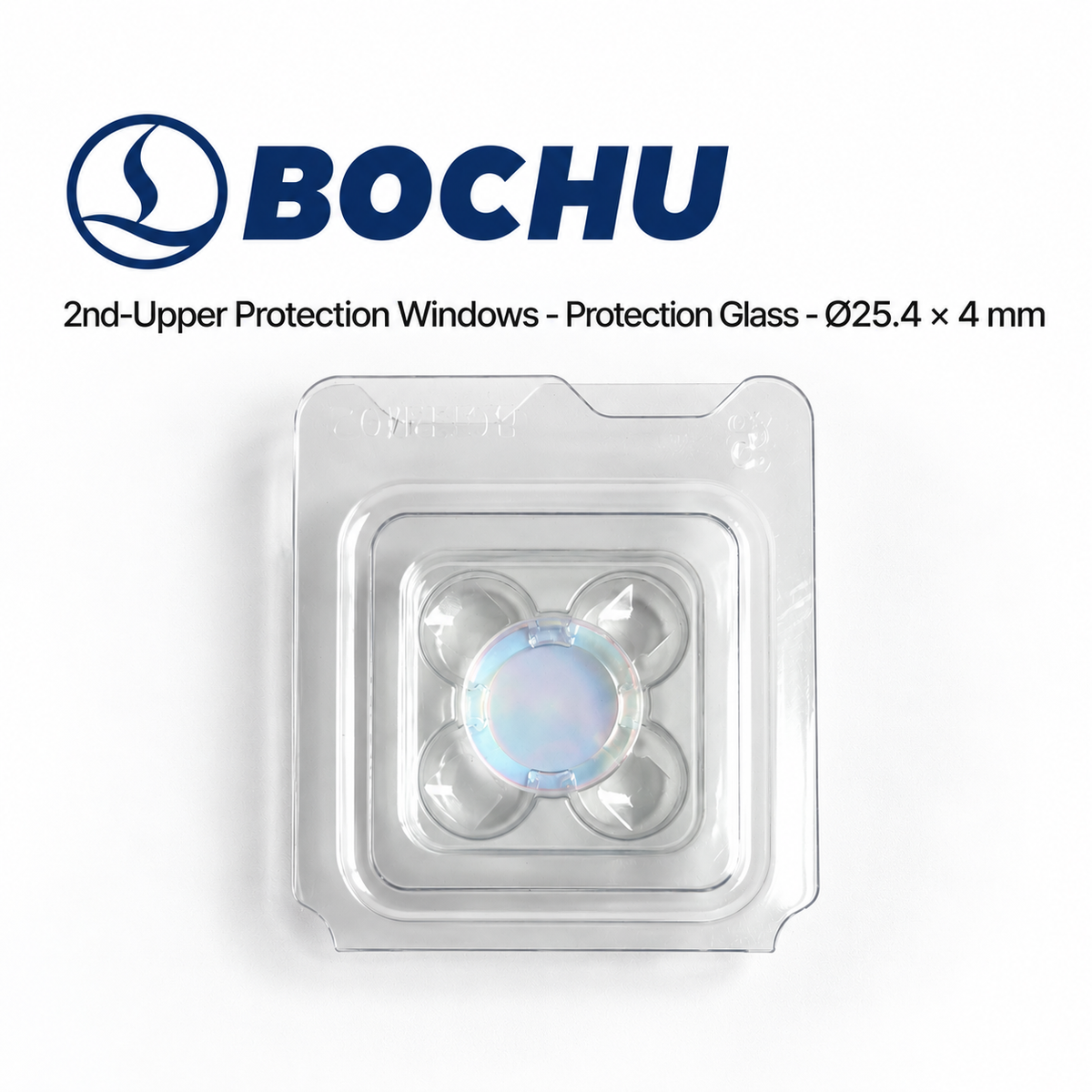

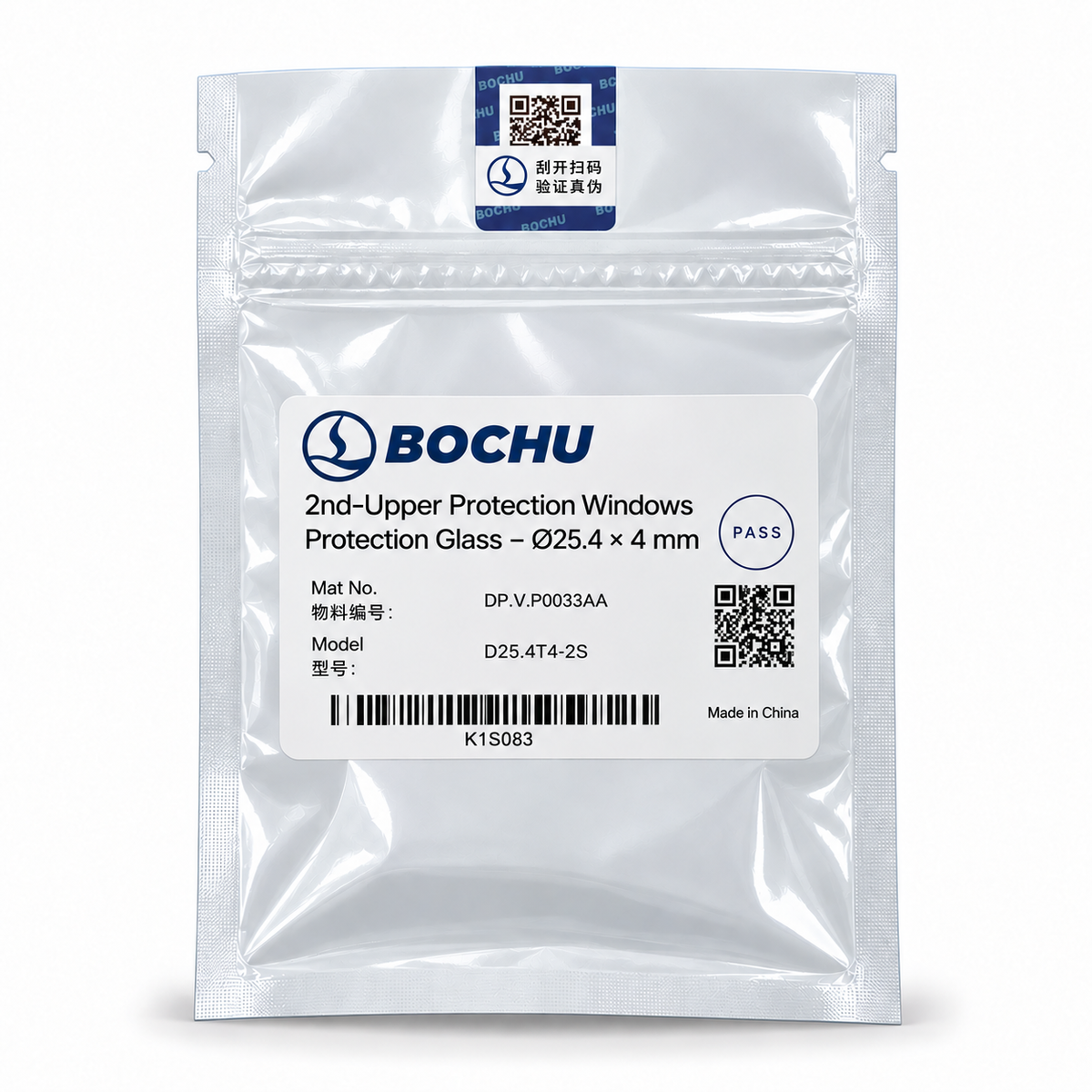

BOCI (Bochu) 2nd-Upper Protection Windows - Long Life Protection Glass - Ø25.4 × 4 mm

Name: BOCI (Bochu) 2nd-Upper Protection Windows - Long Life Protection Glass - Ø25.4 × 4 mm
Brand: BOCI
SKU: PW-D25.4-T4-B
Price: 66.3 AUD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: PW-D25.4-T4-B

Available:

Only 0 item in stock

0 item in stock

In stock

Pre-order

Out of stock

$66.30

Want it delivered by

Description
Reviews

Situated above the sensitive internal lenses of Bochu (BOCI) BLT cutting heads, this long-life second-upper protective window plays an important role in safeguarding critical optical components. At this position, exceptionally high fused silica purity and stringent anti-reflective (AR) coating standards are essential to minimise optical losses and help protect the lenses beneath from contamination.

Manufactured from high-purity fused silica with a premium AR coating, this precision optical window provides excellent laser transmission, low absorption and long-term durability. Designed for extended service rather than frequent replacement, it should only be changed when necessary and with exceptional care to preserve the cleanliness and integrity of the internal optics.

Specifications

Diameter	Ø25.4 mm
Thickness	4 mm
Material	High-purity fused silica
Coating	Premium anti-reflective (AR)
Position	Second-upper (above the lenses)
Service Life	Long life — infrequent replacement

Key Features

✓ High-purity fused silica for demanding optical applications

✓ Premium AR coating helps minimise reflection and transmission losses

✓ Provides an additional protective barrier above sensitive internal lenses

✓ Low optical absorption helps maintain consistent laser performance

✓ Long-life construction minimises the need for frequent replacement

✓ Suitable for demanding industrial laser cutting applications

Compatibility: Bochu / BOCI BLT series cutting heads.

Important — Handling & Replacement: This second-upper window is designed for extended service and should not be changed routinely. Replace only when required, following the cutting head manufacturer's maintenance instructions. Work in a clean, dust-free environment, wear clean gloves and hold the window exclusively by its edges. Avoid touching the optical surfaces and exercise particular care to prevent contamination or damage to the lenses beneath.

Every unit is inspected and quality-assured prior to shipment.
